Cover and drum liner: Key components in industrial equipment
In the stable operation system of industrial equipment, although the outer cover and the drum liner are not core power components, they play a dual role as both "protectors" and "efficiency enhancers", directly affecting the equipment's lifespan, production safety and operational efficiency. From mining crushing equipment to chemical stirring devices, the design rationality and material compatibility of these two types of accessories are the fundamental guarantees for the continuous operation and low-cost operation of industrial production. This article analyzes the functional logic, design key points and application value in typical industrial scenarios of the outer cover and the drum liner.
The outer cover: The first line of defense for equipment safety and environmental adaptation
The core function of the outer cover is to build an "isolation barrier between the equipment and the external environment", and its design needs to balance protective performance, operational convenience and heat dissipation requirements. In Mining Equipment with high dust concentration (such as ball mills and vibrating screens), the outer cover adopts a fully sealed structure (IP65 protection level), and the labyrinth sealing strip prevents mineral powder from entering the bearings and motors, reducing the equipment failure rate by more than 40%. For the pulping equipment in damp paper mills, the outer cover is made of 316 stainless steel and combined with welding sealing technology, which can withstand an environment with a humidity of over 85% and prevent the decline in structural strength caused by rust.
Safety production protection is another key responsibility of the outer cover. In high-speed rotating equipment (such as centrifugal dewatering machines and belt conveyors), the outer cover must pass the impact resistance test (able to withstand a 50J kinetic energy impact without deformation) to prevent splashing injuries caused by component detachment. The design of the transparent observation window (made of polycarbonate sheet with a thickness of ≥5mm) not only does not affect the real-time monitoring of the internal operating status but also can block fragments in case of sudden breakage. Some of the outer covers are integrated with emergency stop buttons and interlock devices - when the outer cover is accidentally opened, the equipment immediately cuts off power to ensure the safety of maintenance personnel. This design reduces the safety accident rate in the workshop by 60%.
The coordinated design of heat dissipation and noise reduction reflects the technical details of the outer cover. In industrial equipment with a motor power greater than 55kW, the top of the outer cover is equipped with a louvered ventilation opening, which, in combination with the built-in deflector plate, forms a natural convection channel where "hot air rises and is discharged", increasing the heat dissipation efficiency by 30%. Meanwhile, the inner lining is made of 50mm thick sound-absorbing cotton (with a density of ≥48kg/m³), which can reduce the operating noise of the equipment from 110 decibels to below 85 decibels, meeting the noise limit standards for workshops. For high-temperature environments (such as peripheral equipment of metallurgical furnaces), the outer cover adopts a double-layer hollow structure, with heat insulation cotton filled in the middle (thermal conductivity ≤0.03W/(m · K)), to keep the outer surface temperature within 60℃ and prevent operators from getting scalded.

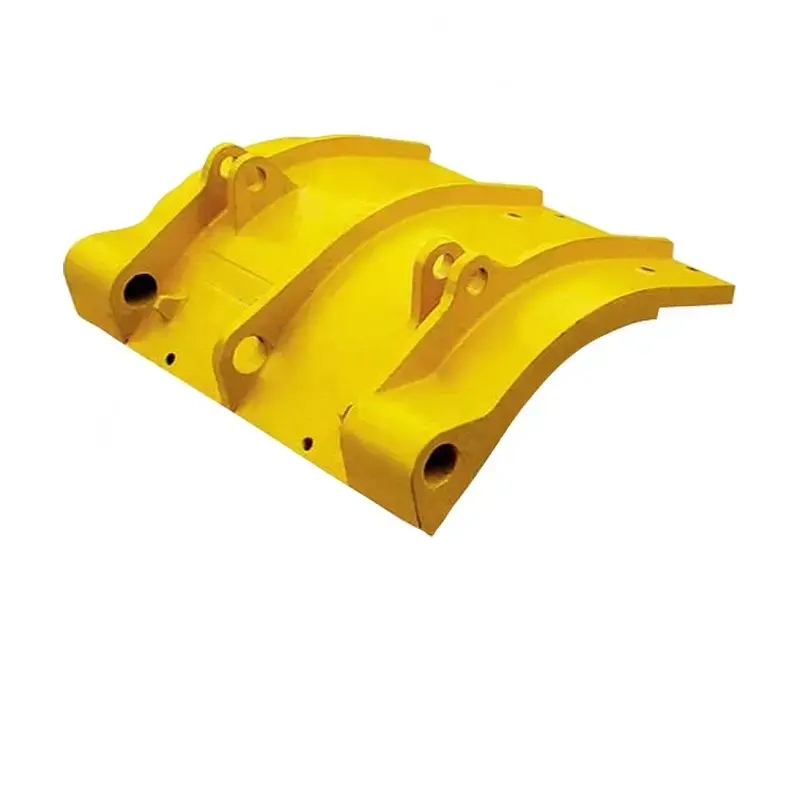

Drum liner: Wear-resistant core in material handling

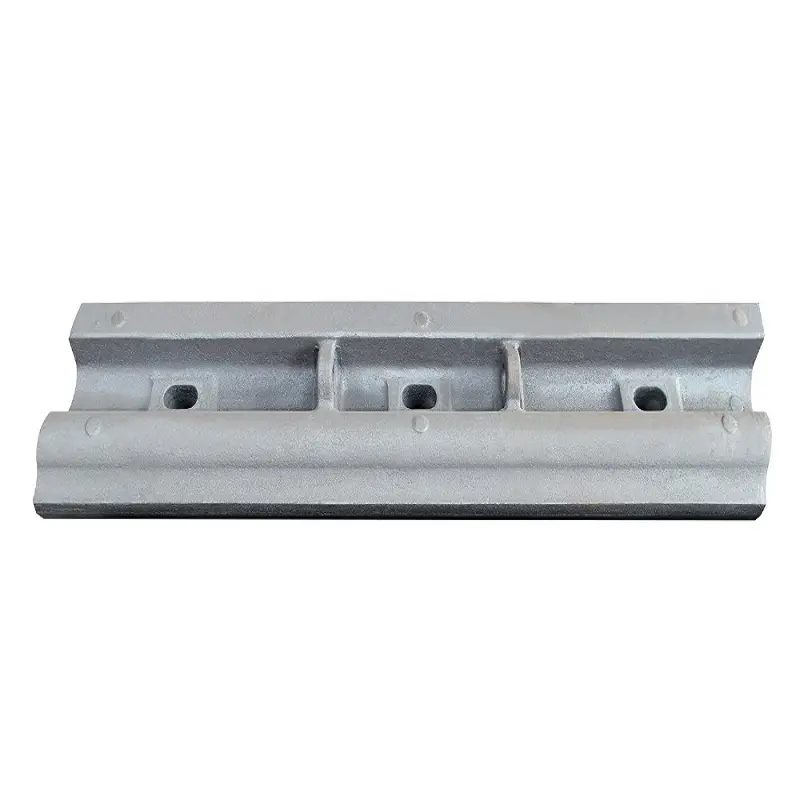

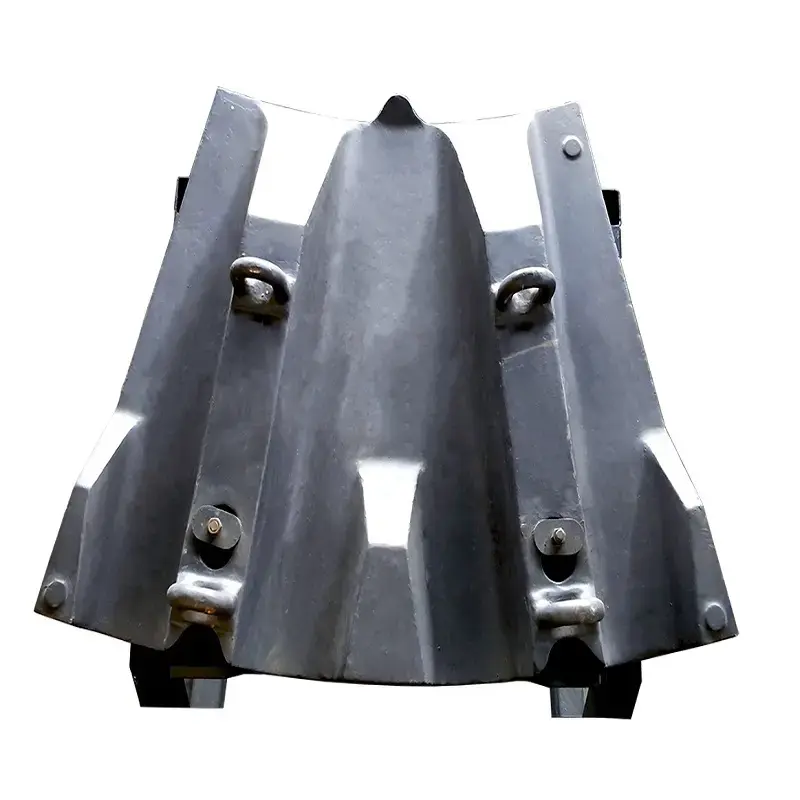

As a rotating component in industrial equipment that directly contacts materials (such as the drum of a ball mill and the drum of a centrifugal separator), the inner lining of the drum serves as a "consumable protective layer" to resist material wear. The performance of the liner directly determines the replacement cycle of the drum body - in a ball mill processing quartz sand (with a Mohs hardness of 7), the service life of a drum without a liner is less than 1,000 hours, while a suitable high-chromium cast iron liner can extend this value to over 8,000 hours.
The material selection of the liner plate needs to match the characteristics of the material. When dealing with high-hardness ores (such as iron ore), bimetallic composite liners (base material Q235 steel + working surface high-chromium cast iron) are selected, with a surface hardness of over HRC60, and their resistance to abrasive wear is twice that of ordinary high manganese steel. When handling viscous materials such as clay and coal slime, the surface of the liner is coated with polytetrafluoroethylene (with a thickness of 0.2-0.5mm), reducing the friction coefficient to below 0.05 and preventing drum imbalance caused by material adhesion. In food-grade equipment (such as starch centrifugal separators), the liners are made of 304 stainless steel and their surfaces are electrolytically polished (Ra≤0.8μm), meeting the hygiene standards for metal materials used in food contact and preventing the growth of microorganisms.
The structural design of the liner affects the efficiency of material processing. In the ball mill, the surface of the liner adopts a layout of "wavy protrusions + trapezoidal grooves", with a protrusion height of 10-15mm and a spacing of 50-80mm. This can enhance the grinding contact area between the steel balls and the materials, increasing the grinding efficiency by 15%. In the drum of the centrifugal dewatering machine, the liner plate is provided with inclined drainage holes (with a diameter of 5-8mm and an Angle of 30° to the axis), which not only does not hinder the material transportation but also accelerates the discharge of filtrate, increasing the dewatering efficiency by 20%. The connection between the liner and the drum adopts a "countersunk bolt + elastic gasket" structure, which prevents the bolt head from wearing the material and compensates for the thermal expansion and contraction gap during operation at the same time.

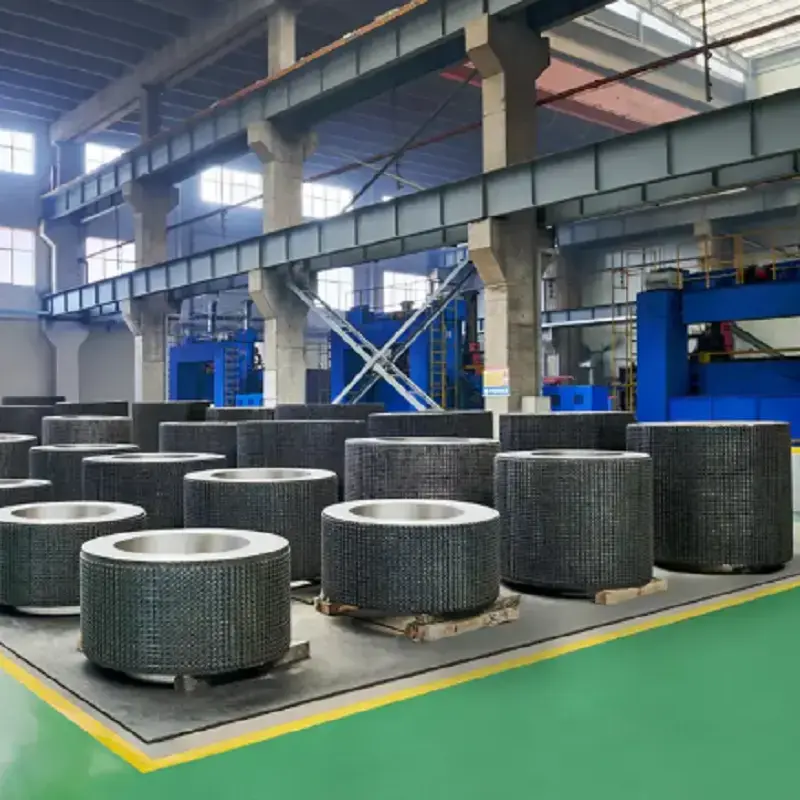

Synergy: The improvement of equipment performance brought about by the combination of accessories

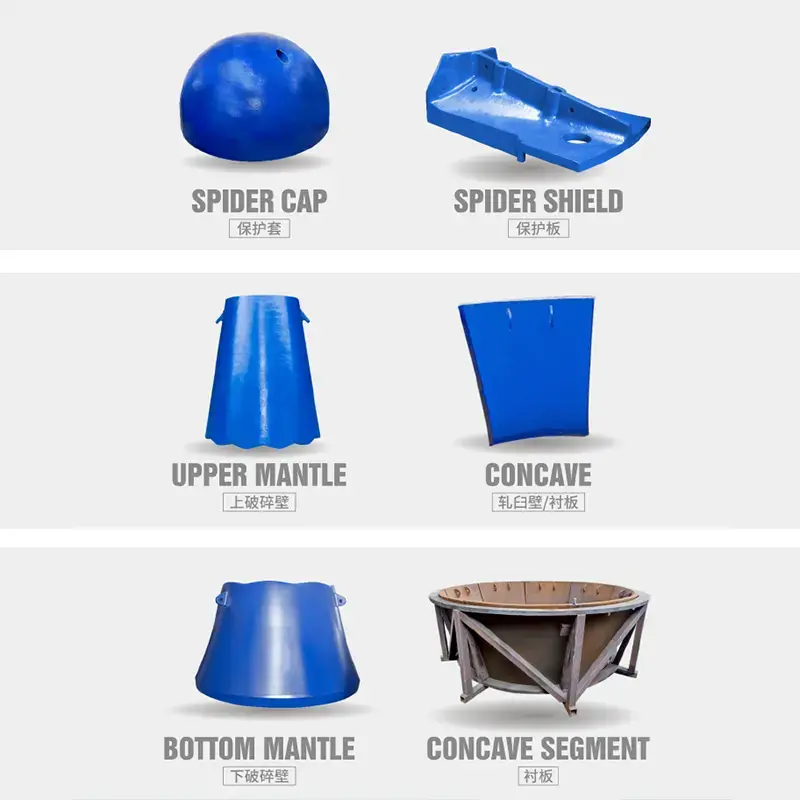

The matching design of the outer cover and the drum liner can form a "closed loop of equipment protection". In the Cone Crusher used in mines, while the outer cover prevents dust from entering, its internal flow guide structure guides the airflow to pass over the surface of the drum liner, reducing the high temperature generated by material friction (lowering the working temperature of the liner from 120℃ to 80℃), and extending the service life of the liner by 30%. In chemical stirring equipment, the explosion-proof design of the outer cover (in compliance with ATEX Zone 2 standards) combined with the anti-corrosion performance of the liner plate (acid and alkali resistance grade ≥98%) can safely handle corrosive materials containing chlorine and sulfur, avoiding safety accidents caused by leakage.
The design details for maintaining convenience reflect the humanized consideration of the accessories. The outer cover adopts a quick-release snap-on connection, allowing a single person to complete the disassembly within 5 minutes, which is convenient for regular inspection of the wear condition of the liner. Wear indicator lines are set at the edge of the liner (a red marking layer is embedded 5mm away from the working surface). When the wear reaches the marking line, the replacement time can be determined without stopping the machine for measurement, reducing unplanned downtime. In large-scale equipment (such as ball mills with a diameter of over 3 meters), the outer cover is reserved with hoisting holes, and the liner is designed as a modular splicing structure (with a single piece weight of no more than 25 kilograms), which shortens the replacement operation time from 8 hours to 4 hours.
Application value in typical scenarios
In the ball mill system of a metal beneficiation plant, the optimized combination of the outer cover and the drum liner can significantly reduce operation and maintenance costs: the adoption of dust-proof outer covers extends the replacement cycle of motor bearings from three months to one year. The use of high-chromium cast iron liners enables the drum body to be free from major overhauls within five years, reducing the overall maintenance cost by 50%. In the centrifugal dewatering machine of the municipal sewage treatment plant, the stainless steel outer cover can resist corrosion in a humid environment, and the food-grade liner can prevent sludge pollution. The continuous operation time of the equipment has been increased to 8,000 hours per year, far exceeding the industry average.
The technological upgrade of the outer cover and the drum liner has always been centered around the core goal of "more comprehensive protection, longer service life and higher efficiency". For industrial equipment users, choosing the right cover and liner not only reduces the equipment failure rate but also creates indirect economic benefits by extending the service life and improving efficiency. International wholesale purchasers need to pay attention to the material characteristics and environmental parameters of different industrial scenarios, provide customers with customized accessory solutions of "material + structure", and reflect the value-added service value throughout the entire life cycle of the equipment.
